Fully Automatic Blowing Machine

Home >> Products >> Fully Automatic Blowing Machine

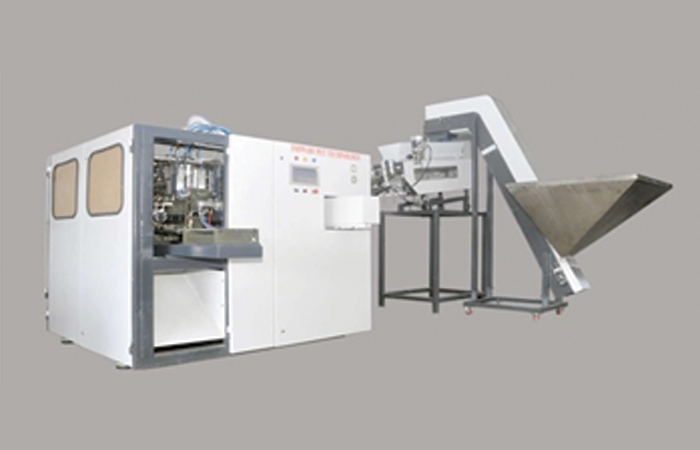

Fully Automatic Blowing Machine

This machine is designed to operate in Automatic Operation Cycle.This machine is used for manufacturing bottles of size 100 ml to 1000ml volume made from Polyethylene Terephtalate (PET) preform by thermal processing & stretch blowing. Preform Auto Loading unit with In-feed assembly and SS Hopper.
Download A Brochure Get A Quote

Bottles take off unit for automatic feeding of bottle (Optional).

Versatile range to produce 1ltr to 500 ml bottle. Neck diameter ranging from 19 mm to 28 mm. In case of small diameter bottles, this increases production rate and reduces production cost.

  • Compact Foot-print with In-built Electrical Control Panel.
  • Air recovery system to reduce LP air consumption.
  • Simple Mechanical construction with Electro-Pneumatic controls for easy maintenance.
  • Touchscreen HMI & Automation Control PLC
  • Trouble-free operation with autonomous maintenance.
Production Rate (Bottle\Hours) 3600-7200 BPH
Max Bottle Volume(ml) 1000 ML
Max Neck Size(mm) 28
No of Cavity 2, 4 & 6 cavities
Max Container Dia (mm) 85-90 mm
Preform Loader Yes
Bottle Unloader Yes
