Automatic Filling Machine

Download A Brochure Get A Quote

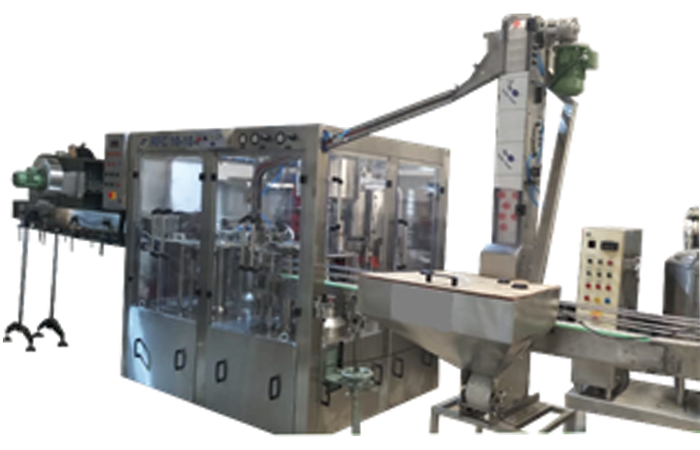

  • This machine is designed to operate in Automatic Operation Cycle. It has Rotary Rinsing, Filling & Capping operation. This machine is used for filling bottles of size 200 ml to 2000ml volume.
  • It has Rinser-Filler-Capper purely mechanical machine for durailty.
  • Machine will be made in Stainless Steel- 304 and product contact parts in Stainless Steel-316. The machine base frame will be in Mild Steel.
  • Having the Standard Feature of “NO FILL / NO CAP”.
  • Complete wraparound shell for rinser - filler - Monoblock with Stainless Steel-304 cladded, machined platform with precise location for assembled housings. Main drive motor will have variable speed AC drive for easy regulation of machine operating.
  • Out feed slat conveyors, with Stainless Steel-304 supports. Conveyor gear motor has variable speed AC drive.
  • Automatic cap transfer operation using the cap elevator, which will sort and deliver the caps to the chute.
Type Multi Head Rotary Type
Max. Bottle Volume 2 Liter
Output/min 30 – 200 BPM (Bottles/Min)
Neck Diameter Range 28-30mm
Max. Container Diameter 95mm
Max. Container Height 360mm
Filling Range 200 ml to 2000 ml
